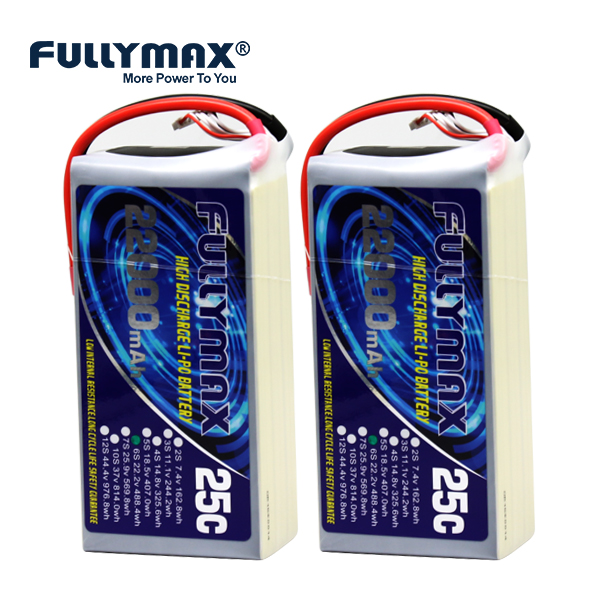

Muti Copter UAV Drone Battery 22000mah 22.2v Lipo Battery 6s 22000mah Fullymax 6cell 25C Quadcopter

Fullymax Battery Co., Ltd.

Muti Copter UAV Drone Battery 22000mah 22.2v Lipo Battery 6s 22000mah Fullymax 6cell 25C Quadcopter

  • 1
  • 2

Brand Name : FULLYMAX

Model Number : FB22000HP -6S

Place of Origin : China

MOQ : 30pcs

Price : To be negotiated

Payment Terms : T/T, Western Union, MoneyGram, etc

Supply Ability : 50Kpcs for stacking cell per day, 200Kpcs for winding cells per day

Delivery Time : 3~7 working days for small order, 14~21 working days with cells in stock for mass order, 4~6 weeks for cells out of stock

Packaging Details : color box

Capacity : 22000mAh

Model Description : 6S / 6Cell / 22.2V

Discharge Rate : 25C

Max Burst Rate : 50C

Wh : 488.4

Weight : 2678g

Dimensions (mm) : 66x99x208mm

Wire Gauge : AWG10#

Wire length : 100mm

Balancer Connector Type : JST-XHR

Contact Now

Muti Copter UAV Drone Battery 22000mah 22.2v Lipo Battery 6s 22000mah Fullymax 6cell 25C Quadcopter

Fullymax 22.2V 22000mAh 6cell 25C Quadcopter Muti-copter Drones high capacity lipo Battery

With vision of 'Become a global leading new energy enterprise with high rate discharge battery as the core', Fullymax focus on supplying power to drone, UAV, Multirotor, UAS, eVTOL or Aircraft. Dedicating to providing better flight power and longer time, Fullymax has been has been continuously putting great efforts in technology research & development and constantly breaking through ourselves to bring you better products and experiences.

Fullymax high capacity batteries provide high quality, reliable power for your RC,eVTOL,Quadcopter,Multirotor,Hexacopter,etc.


All Fullymax UAV LiPos are packed with vibration-proof & fire-proof material and packed with battery carton ensuring you get your battery in good condition.

Muti Copter UAV Drone Battery 22000mah 22.2v Lipo Battery 6s 22000mah Fullymax 6cell 25C Quadcopter Related Feature

Muti Copter UAV Drone Battery 22000mah 22.2v Lipo Battery 6s 22000mah Fullymax 6cell 25C Quadcopter

For other configurations (without discharge plug) with same cell model, please refer below table.

Battery pack Model Description Max cont. discharge Burst (3Sec) Dimensions H x W x L Weight Wh
FB22000HP -1S 3.7V 22000mAh 1cell 25C 50C 10.3x98x197.5mm 436.7g 81.4
FB22000HP -4S 14.8V 22000mAh 4cell 25C 50C 42x98.5x206.5mm 1764g 325.6
FB22000HP-6S 22.2V 22000mAh 6cell 25C 50C 66x99x208mm 2678g 488.4



Muti Copter UAV Drone Battery 22000mah 22.2v Lipo Battery 6s 22000mah Fullymax 6cell 25C Quadcopter Product Feature

Muti Copter UAV Drone Battery 22000mah 22.2v Lipo Battery 6s 22000mah Fullymax 6cell 25C Quadcopter

- Stable automatic stacking technology enables single-cell capacities 22000mAh.


- Higher capacity than comparable size lipo packs.


- Perfect match for high-performance models.​

Muti Copter UAV Drone Battery 22000mah 22.2v Lipo Battery 6s 22000mah Fullymax 6cell 25C Quadcopter Application

Muti Copter UAV Drone Battery 22000mah 22.2v Lipo Battery 6s 22000mah Fullymax 6cell 25C Quadcopter

Compatible with Large UAVs, RC,eVTOL,Quadcopter,Multirotor,Hexacopter,etc.

Muti Copter UAV Drone Battery 22000mah 22.2v Lipo Battery 6s 22000mah Fullymax 6cell 25C Quadcopter Packaging & Shipping

Muti Copter UAV Drone Battery 22000mah 22.2v Lipo Battery 6s 22000mah Fullymax 6cell 25C Quadcopter

Regular Safety Packing Or As Customer's Requirements.

Shipping By Sea, Air Or UPS, DHL, FedEx Express.

PAYMENT TERMS

Muti Copter UAV Drone Battery 22000mah 22.2v Lipo Battery 6s 22000mah Fullymax 6cell 25C Quadcopter

EXPRESS OPTIONS

Muti Copter UAV Drone Battery 22000mah 22.2v Lipo Battery 6s 22000mah Fullymax 6cell 25C Quadcopter

Muti Copter UAV Drone Battery 22000mah 22.2v Lipo Battery 6s 22000mah Fullymax 6cell 25C Quadcopter Manufacturing Capability

Muti Copter UAV Drone Battery 22000mah 22.2v Lipo Battery 6s 22000mah Fullymax 6cell 25C Quadcopter

Capacity&Leadtime

● Stacking/per day:50Kpcs

● Winding/per day:5,00Kpcs

● Regular Model:≤8 weeks

● Customized:16-18 weeks(The first order, if nonew facility added )

Muti Copter UAV Drone Battery 22000mah 22.2v Lipo Battery 6s 22000mah Fullymax 6cell 25C Quadcopter Muti Copter UAV Drone Battery 22000mah 22.2v Lipo Battery 6s 22000mah Fullymax 6cell 25C Quadcopter

The new plant will be located in the Dongjiang Bay Industrial Park, which will be a national high-end industrial park special for new energy, new information technology and intelligent equipment fields based on the “3+7” industrial park planning and deployment proposed by Huizhou relying on the Greater Bay Area, aiming to integrate Huizhou’s “1+4” industrial parks. The area of the new plant is estimated to be 30,000 square meters. With new high-end equipment and workshop environment, the goal is to build a high-end production line dedicated to high-end customers.

Muti Copter UAV Drone Battery 22000mah 22.2v Lipo Battery 6s 22000mah Fullymax 6cell 25C Quadcopter Quality Management Syste

Muti Copter UAV Drone Battery 22000mah 22.2v Lipo Battery 6s 22000mah Fullymax 6cell 25C Quadcopter

Management Improvement according to international standards

Muti Copter UAV Drone Battery 22000mah 22.2v Lipo Battery 6s 22000mah Fullymax 6cell 25C Quadcopter Muti Copter UAV Drone Battery 22000mah 22.2v Lipo Battery 6s 22000mah Fullymax 6cell 25C Quadcopter
  • Quality management systems Requirements for Aviation
  • ISO9001 Quality Management System
  • ISO14001 Environmental Management System
  • Hazardous Substance Process Management System
  • Occupational Health And Safety Management System

Safety and environmental Certificates

capability&service

  • Simulation tests of safety certificates proceeded
  • Service of certificates application for customers

Muti Copter UAV Drone Battery 22000mah 22.2v Lipo Battery 6s 22000mah Fullymax 6cell 25C Quadcopter

Performance Test Capability

  • Electric Performance Test
  • Safety Performance Test
  • Mechanical Performance Test
  • Environmental Performance Test
  • Storing Performance Test

Muti Copter UAV Drone Battery 22000mah 22.2v Lipo Battery 6s 22000mah Fullymax 6cell 25C Quadcopter FAQ

Muti Copter UAV Drone Battery 22000mah 22.2v Lipo Battery 6s 22000mah Fullymax 6cell 25C Quadcopter

Q1. What are the diferences betwee high C-rate and low C-rate lithium?

polymer (Li-Po) batteries.
In general, the diferences lie in the materials made of the positive & negative terminals, the area density design, the electrolyte ingredient, the septum data and the density of inside pieces.

Q2. How is a Li-Po battery made?

When a Li-Po battery is made, five main aspects should be considered carefully:

(1). Battery Pack should have suficient strength, so that the polymer battery inside could be efectively protected from mechanical shocks;

(2). The polymer cell should be fixedto the battery pack onits large surface area - no cell movement in the battery packshould be allowed;

(3). No sharp edge components should be inside the packcontaining the polymer battery, and meanwhile, suficient insulation layer between wiring and the cell should be used to maintain multiple safety protection;

(4). Ultrasonic welding is recommended for polymer tab connection to obtain low-resistance, high-reliability and light-weight properties;(5). Polymer packs shouldbe designed carefully so that no shear force is applied, and also, no heat is generated even when leakage ocurs for mishaps. PCM from electrolyte leakage should be isolated as perfectly as posible, and narrow distance between bare circuit patterns should be avoided.

Q3. How to Charge li-Po battery?

1. Charging Current: Charging current should be less than the maximum charging current listed in specifications. Charging with higher current than recommended may cause serious damage to cell performance and safety features,leading to heat generation or leakage.

2. Charging Voltage: Charging should be performed at a voltage less thanthat listed in specifications (4.20V/cell). Charging at above 4.25V-the absolute maximum voltage, must be strictly prohibited.The chargers used should have this voltage limitation function. Charging with higher voltage than specified is very dangerous, which may cause serious damage to the cell performance and safety features, leading
to heat generation or leakage.

3. Charging Temperature: The cells should be charged within a range of temperatures listed in the specifications. Always let the batteries cool down to ambient temperature before charging.

4. Prohibition of Reverse Charging: Do not reverse the positive(+) and negative(-) terminals. Otherwise, the batery pack wil be reverse-charged and abnormal chemical reactions may ocur. Ecesively high current may flow during recharging, possibly leading to damage, overheating, smoke emission, bursting and/or ignition.
5. Use specific Li-Po charger only. DO NOT use a Ni-MH or Ni-Cd charger. It is your responsibility solely to ensure that the charger you purchased works properly.
6. Never charge batteries unattended. Always monitor charging process to assure batteries are being charged properly. Always charge the batteries in an isolated and safe area away from any flammable or/and combustible materials.

Q4. Why do we need formation process?

Organic solvents easily decompose on the negative electrodes during charging, leading to battery swelling, drop of cell capacity, and unsafety caused by activereaction. The purpose of the formation process is to form a solid layer called the solid electrolyte interphase (SEl), which is electrically insulating yet provides significant ionic conductivity. This interphase prevents further decomposition of the electrolyte after the second charging.

Q5. Why do Li-Po batteries bloat/swell?
The Li-Po batteries may bloat or swell due to the following reason:
1. Overcharging:Normally, the maximum charge voltage is 4.2V for RC batteries. If the batteries were overcharged beyond 4.4V, electrolytic oxidation process would happen, which generates mass gas leading to battery swelling.
2. Overheat:When discharging in high temperature or high C rate, the temperature of the inner part of the battery can be even higher, which gasify the electrolyte and results in swelling.
3. Shot-circuit.:If short circuit happened, the cell voltage would drop very fast and the electrolyte would be reactive to generate gases, leading to battery swelling.
4, Sealing:If sealed without proper processing, the battery cell would have water and air in, so that the electrolyte would be reactive to generate gases, leading to battery swelling.
Q6.What discharging conditions do you recommend?

1. We Recommended a cut-off voltage as 3.0 V for standard series batteries.
2. The dischargerate should not exceed the maximum continuous discharge rate listed in the specifications.
3. The discharge temperature range should be -20℃ to +60 ℃. For maximum performance of our high-power series batteries, discharge temperature between 20℃ and 40℃ isrecommended.
